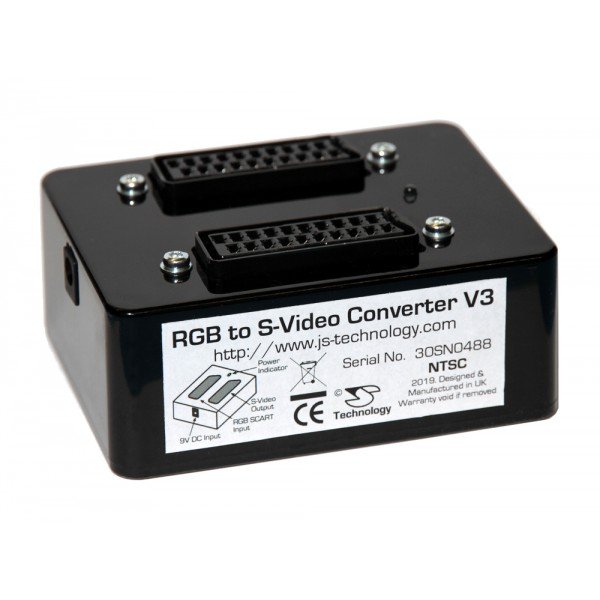

RGB (SCART) to S-Video NTSC V3

New V3 VERSION - Compact form factor.

More details


£54.17 tax incl.

  • New V3 VERSION - Improved picture quality and smaller more compact design.
  • Choice of PAL or NTSC compatible output - this page is for the NTSC US compatible regions.
  • Input of RGB from a DVD player, Sky Digibox, FreeView, Digital Cable, Vintage computers, Retro arcades or any other domestic RGB video source.
  • RGB SCART or RGB with Sync-On-Green compatibility.
  • Improved S-Video picture quality via SCART connector, optional adaptor available for 4-pin mini-DIN.   See Cables section.
  • Audio is passed through without modification to ensure optimum audio quality.
  • Ideal for use with video capture devices.
  • Compact design, supplied with correct EU / UK / AUS / US power adaptor for your region.



LAUNCH OFFER: Free SCART to S-Video Adaptor.



The original and best just got better.   Improved circuitry routing to give superior picture quality.   We've kept what our customers always appreciated about J.S. Technology products, a high quality design built to a very high standard.   There is no comparison.



The RGB to S-Video converter is the solution to connecting Digital Set-top Boxes (Sky Digital, FreeView and digital cable) to home Audio-Visual (AV) equipment, or "home-cinemas".   While connection of composite video is possible, the picture quality is poor.   RGB connection is not supported by all AV amplifiers and video recorders.   The only solution is S-Video - the connection for AV amplifiers, receivers, S-VHS / D-VHS / DVD-R recorders, projectors, LCDs TVs and plasma panels.



For use with Sync-On-Green RGB feeds, such as from old arcade machines, the internal synchronisation path can be changed from the Composite on SCART to the Green colour channel via an internal jumper.



NTSC and PAL versions are available.   NTSC primarily for use in the USA with PAL for Europe and UK.



Wide Screen Switching information via SCART Pin-8 information allows aware TVs and video recorders to retain this information.   Ideal where your TV or VCR is wide screen aware.*



The RGB to S-Video converter connects to DVD players or Digital Set-top Box's RGB output via a SCART connection.   The converted picture is available via SCART or with the use of an optional adaptor a 4-pin mini-DIN connector.   For optimum audio quality, the audio is passed directly to the output connectors.



The unit is self contained and doesn't require any user intervention. Just plug in and get converted!



*Not all systems are compatible with pin 8 switching.
